Compose Vectorize is a Kotlin Multiplatform library to generate compose.ui.graphics.vector.ImageVector from XML files. It is built on top of AndroidX material-icons vector generator, but it allows transforming not only solid plain icons but also illustrations and creates categories for resources automatically based on folder structure.

How to use

First, add the gradle plugin in your project. Inside plugins{} block in build.gradle root file.

plugins {
    id("dev.sergiobelda.compose.vectorize") version "$VERSION" apply false
}

To use the generated ImageVectors, you must add the compose-vectorize-core dependency to your project. Depending on whether your project is Kotlin Multiplatform or not, add the following dependency to the dependencies block.

For Android only projects:

plugins {
    id("com.android.application")
    id("org.jetbrains.kotlin.android")
    id("dev.sergiobelda.compose.vectorize") version "$VERSION"
}
dependencies {
    implementation("dev.sergiobelda.compose.vectorize:compose-vectorize-core:$VERSION")
}

For Kotlin Multiplatform projects:

plugins {
    kotlin("multiplatform")
    id("org.jetbrains.compose")
    id("dev.sergiobelda.compose.vectorize") version "$VERSION"
}
kotlin {
    sourceSets {
        val commonMain by getting {
            dependencies {
                implementation(compose.ui)
                implementation("dev.sergiobelda.compose.vectorize:compose-vectorize-core:$VERSION")
            }
        }
    }
}

Create a folder called xml-images in the module folder.

To generate the ImageVectors, call the gradle task generateImages or launch the application:

./gradlew generateImages

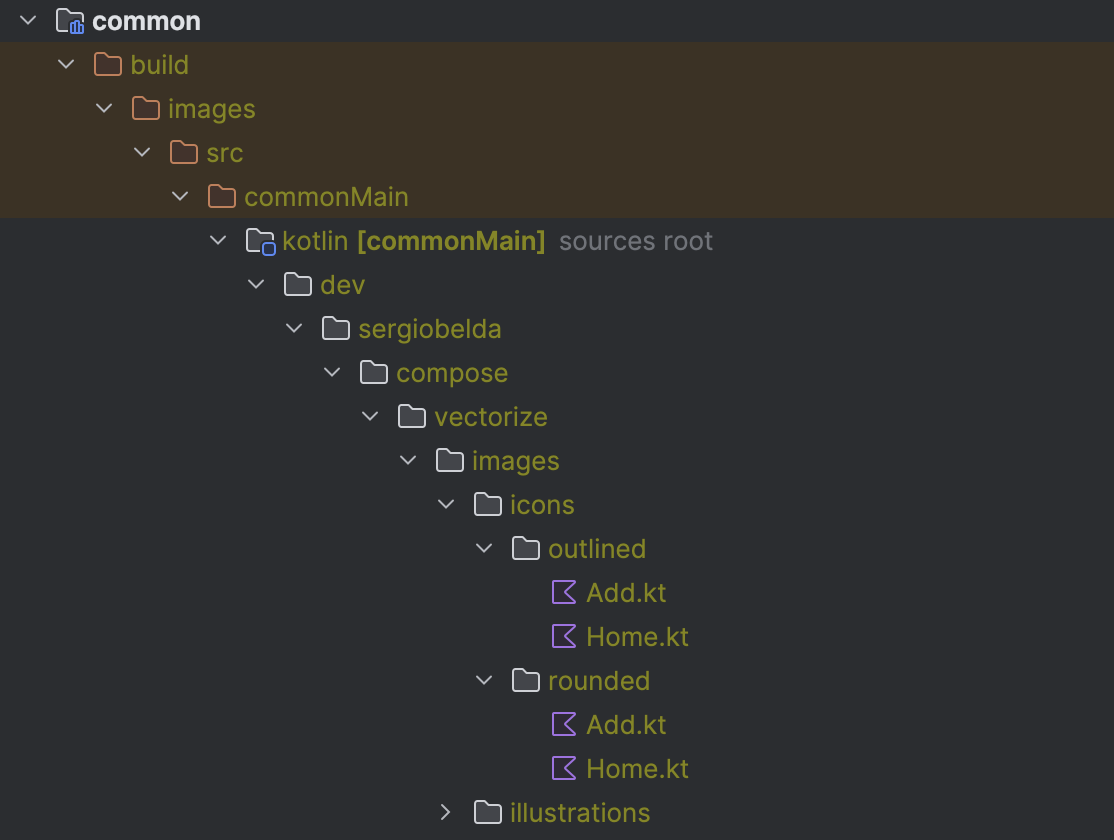

This task will create the Kotlin files inside module’s build folder, in the images folder. The default package name for generated files is dev.sergiobelda.compose.vectorize.images

You can set a custom packageName for your images resources, using composeVectorize function in the build.gradle file.

composeVectorize {
    packageName = "dev.example.myproject"
}

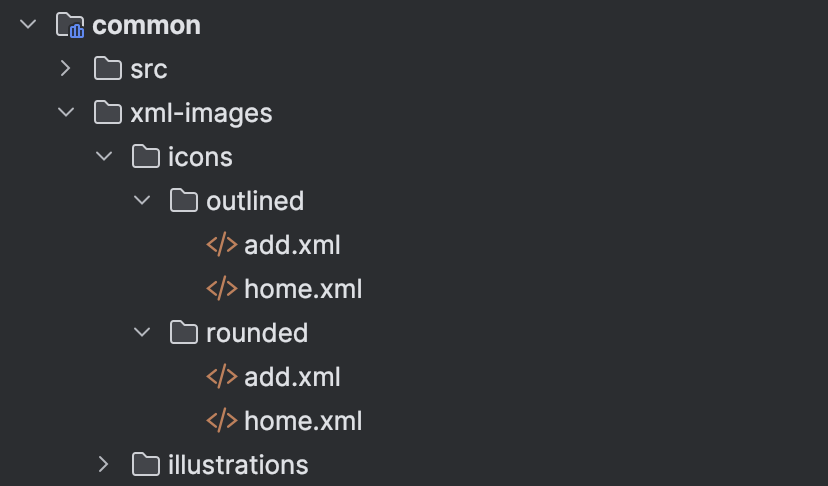

Inside xml-images you can create folders to categorize these resources. The library will automatically create a tree structure of objects to access to the variables.

public object Images {
    public object Illustrations

    public object Icons {
        public object Rounded

        public object Outlined
    }
}

For example, for the previous screenshot, we can access to Home icons using the Images object and navigate to the variables through the object structure.

Icon(
    imageVector = Images.Icons.Outlined.Home,
    contentDescription = null
)

Icon(
    imageVector = Images.Icons.Rounded.Home,
    contentDescription = null
)

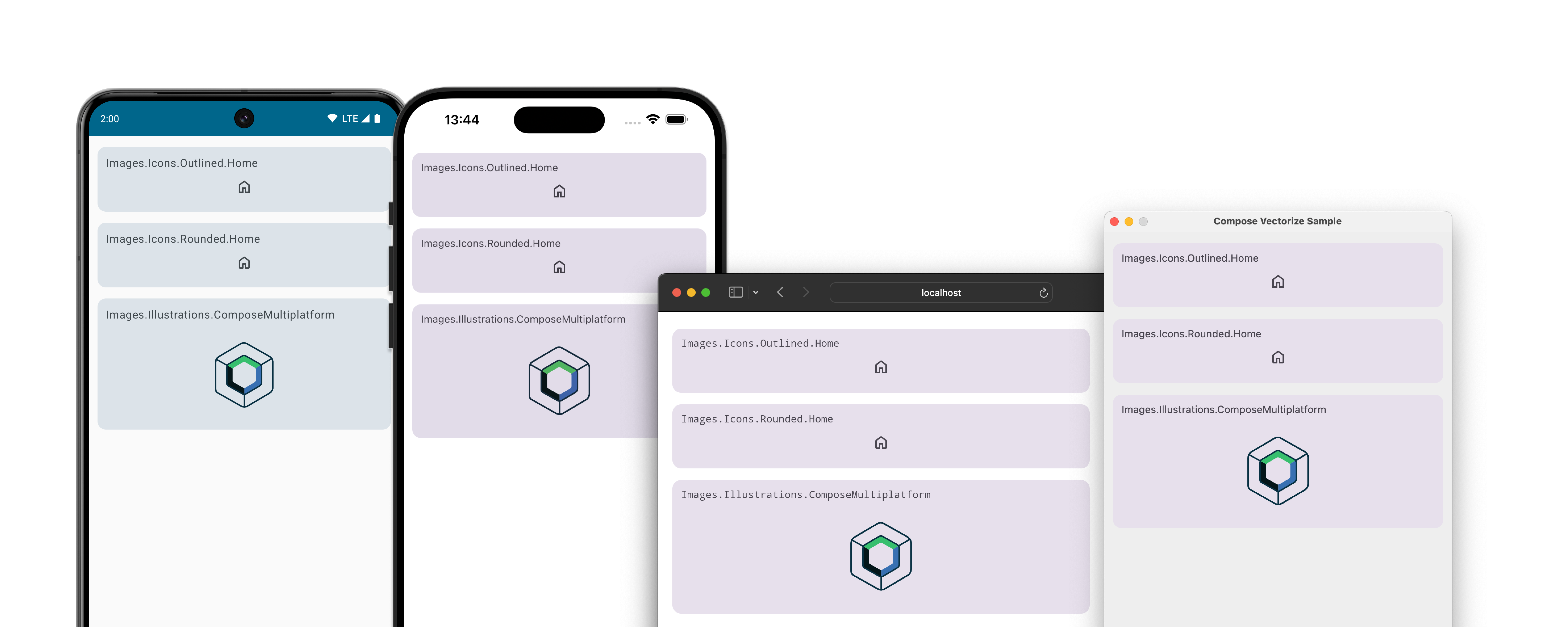

Compose Vectorize on different platforms
